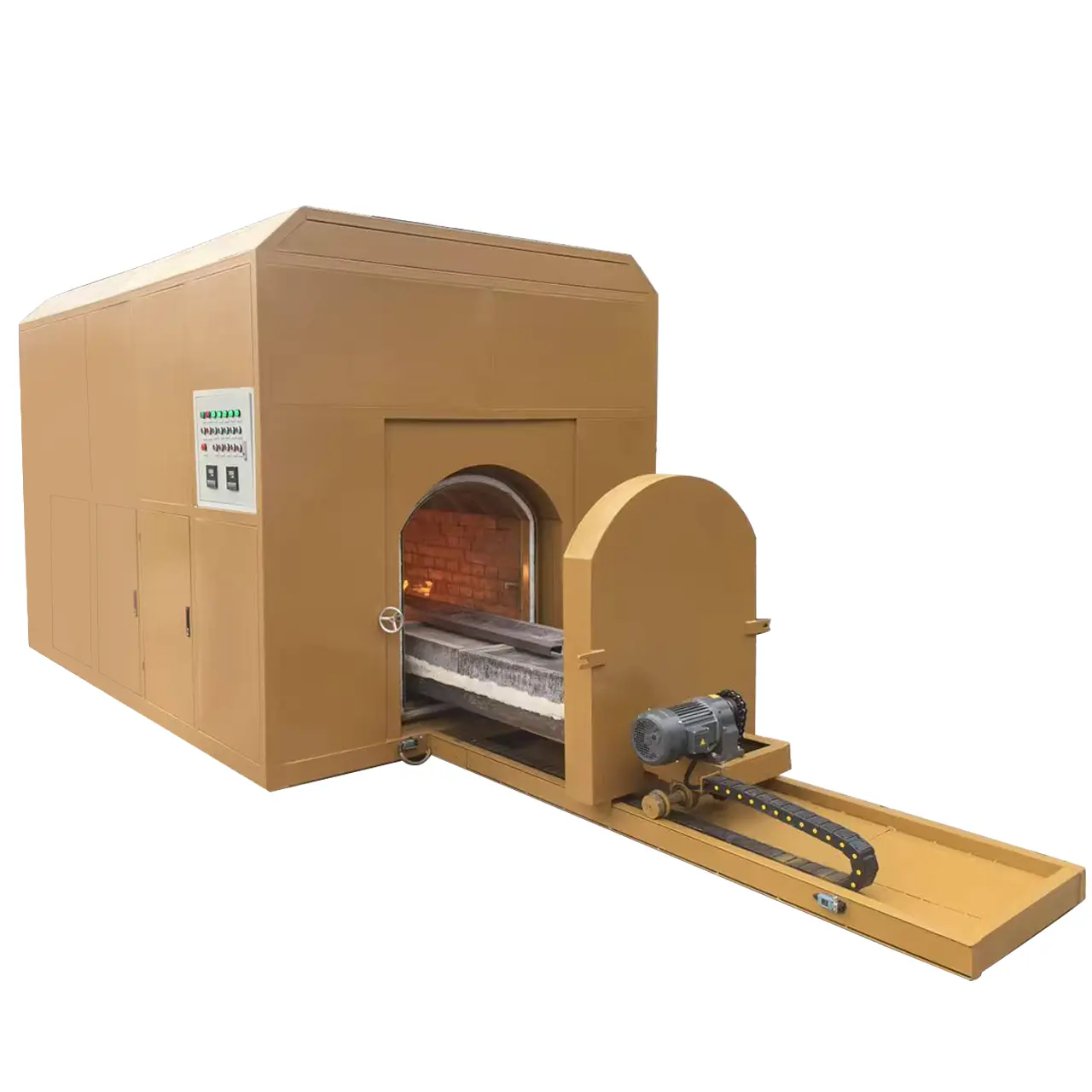

100kg Pet Carcass Incinerator

Our 100kg pet carcass incinerator is designed for medium-scale professional operations including veterinary hospitals, pet cremation services, animal shelters, and mid-sized farms. This advanced system balances high-efficiency combustion with environmental compliance, offering reliable performance for daily operation while meeting international emission standards.

100kg pet carcass incinerator Key Features

① High-Performance Combustion System

· Dual-Chamber Technology: Primary chamber (850-1100°C) with secondary afterburner (≥1200°C)

· Adaptive Burner Control: Automatic fuel-air ratio adjustment for optimal combustion

· Rapid Heat-Up: Reaches operating temperature in ≤30 minutes

② Comprehensive Emission Control

· Integrated Scrubbing System: Dry adsorption + wet scrubbing (acid/alkali neutralization)

· Particulate Control: High-efficiency cyclone separator (removes 95% of PM10)

· Odor Elimination: Optional activated carbon filtration or UV photolysis

③ Intelligent Operation

· Touchscreen HMI: 10" color display with multi-language interface

· Programmable Cycles: 10 preset programs for different material types

· Remote Monitoring: 4G/WiFi connectivity for offsite supervision

④ Robust Construction

· Heavy-Gauge Steel: 4mm 304 stainless steel exterior

· Refractory Lining: 150mm ceramic fiber blanket + castable refractory

· Thermal Efficiency: 72% with heat recovery jacket option

⑤ Safety Systems

· Automatic Door Lock: Pressure-sealed during operation

· Over-Temperature Protection: Dual redundant sensors

· Emergency Stop: ISO-certified safety circuit

100kg pet carcass incinerator Technical Specifications

100kg pet carcass incinerator Optional Features

· Ash Processing System: Automatic collection and cooling

· Memorial Service Package: Viewing window with privacy screen

· Mobile Configuration: Wheeled base with hitch

· Solar Power Hybrid: Reduce grid dependence

· AR Maintenance Guide: Tablet-based troubleshooting

100kg pet carcass incinerator Compliance Standards

· Meets EU Animal By-Products Regulation (EC) No 1069/2009

· Complies with US EPA 40 CFR Part 60 Subpart EEEE

· CE Certified (EN 746-2)

· ISO 9001:2015 Quality Management

100kg pet carcass incinerator Operational Workflow

1. Preparation: Weighing and arrangement of remains

2. Loading: Manual or assisted loading (ramp available)

3. Ignition: One-button start sequence

4. Combustion: 2-3 hour automated cycle

5. Cooling: 45 minute passive cooldown

6. Ash Collection: Sterile stainless steel containers

100kg pet carcass incinerator Maintenance Protocol

· Daily: Burner inspection, ash removal

· Weekly: Refractory condition check

· Monthly: Emission system servicing

· Annual: Comprehensive factory service

100kg pet carcass incinerator Applications

· Pet Cremation Services: Individual or communal cremation

· Veterinary Teaching Hospitals: Educational use

· Animal Control Facilities: Stray animal management

· Poultry Farms: Disease outbreak containment

· Wildlife Rehabilitation: Deceased specimen handling

100kg pet carcass incinerator Environmental Performance

· Dioxin Emissions: <0.5 ng TEQ/Nm³

· CO Emissions: <50 mg/Nm³

· Energy Recovery: Optional heat exchange for facility heating

· Water Usage: Closed-loop system (0 wastewater)

100kg pet carcass incinerator Comparison Advantages

· 30% Faster cycle time than comparable models

· 15% Lower fuel consumption industry average

· 50% Longer refractory life expectancy

· 100% Traceable material sourcing

100kg pet carcass incinerator Conclusion

The 100kg pet carcass incinerator represents the optimal balance between capacity and operational efficiency for professional animal care providers. Combining advanced combustion technology, intuitive controls, and regulatory compliance, the system delivers reliable performance for organizations that require mid-scale cremation capabilities without compromising environmental responsibility or operational flexibility.
