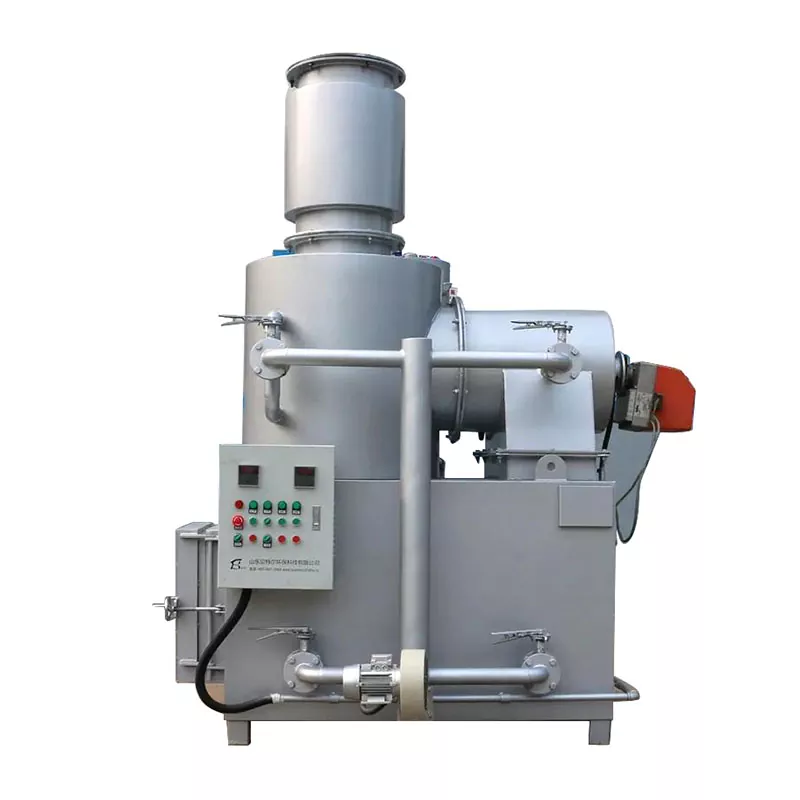

The 50kg pet cremation incinerator is an advanced, environmentally friendly solution for the safe disposal of animal remains. Designed for pet funeral services, veterinary clinics, farms, zoos, and laboratories, this high-efficiency incinerator ensures complete combustion while meeting strict environmental and sanitary standards.
● High-Temperature Burning: Primary chamber reaches 800°C–1100°C, while the secondary chamber exceeds 1000°C–1200°C for complete combustion.
● Automatic Fuel Control: Supports diesel, natural gas, or LPG with an intelligent burner system for optimized fuel efficiency.
● Multi-Stage Flue Gas Treatment: Equipped with cyclone dust removal + spray tower + activated carbon adsorption (optional) to reduce pollutants (dioxins, SO₂, NOx).
● Low Emissions Compliance: Meets GB18484-2020 & HJ/T 298-2007 standards (dust ≤50mg/m³).
● PLC + Touchscreen Panel: Allows temperature/time adjustment with real-time monitoring.
● Safety Protections: Overheat alarm, flame failure detection, and gas leakage alerts.
● High-Quality Materials: Outer shell made of 304 stainless steel, inner chamber lined with 310S heat-resistant steel + refractory castable.
● Insulation Layer: Dual-layer ceramic fiber + rock wool minimizes heat loss (external temp. ≤60°C).
● Large Access Door: Hydraulic-assisted sealing ensures easy loading and zero smoke leakage.
● Automatic Ash Removal (Optional): Bottom ash drawer simplifies maintenance.
|
Parameter |
Specification |
|
Model |
PS-50 |
|
Capacity |
Max. 50kg per batch |
|
Fuel Type |
Diesel / Natural Gas / LPG (Optional) |
|
Primary Chamber Temp. |
800°C–1100°C (Adjustable) |
|
Secondary Chamber Temp. |
1000°C–1200°C |
|
Fuel Consumption |
Diesel: 5–8L/hour (Varies by load) |
|
Power Supply |
220V/380V, 50Hz (Control System) |
|
Chimney Height |
Standard 4m (Customizable) |
|
Emission Standard |
Complies with GB18484-2020 & HJ/T 298-2007 |
|
Dimensions (L×W×H) |
1500×1000×1800mm (Customizable) |
|
Weight |
Approx. 350kg |
✔ Pet Funeral Services: Cremation for large pets (e.g., Golden Retrievers, Huskies).
✔ Veterinary Clinics/Farms: Hygienic disposal of deceased animals to prevent disease spread.
✔ Zoos/Labs: Safe elimination of mid-sized animal remains (e.g., foxes, sheep, lab specimens).
✔ Municipal Use: Stray animal carcass disposal in compliance with public health regulations.
This 50kg Pet Carcass Incinerator high-temperature combustion, smart automation, and eco-friendly design, making it ideal for professional and large-scale animal remains disposal. Contact us for tailored solutions!
