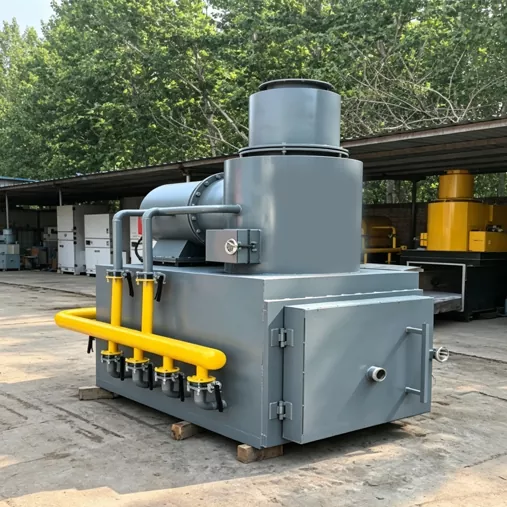

The 50kg Medical Waste Disposal Incinerator is specially designed for the safe treatment of medical waste, including infectious waste, disposable medical supplies, pathological waste, animal carcasses, laboratory waste, and other hazardous combustible materials.
The system adopts a high-temperature two-stage combustion technology. Medical waste is completely burned in the primary combustion chamber, and the generated combustible gases are further oxidized in the secondary combustion chamber to achieve efficient destruction of harmful substances, reducing emissions of smoke, odor, and pollutants.
|
No. |
Name |
Specifications |
Quantity |
Other |
|
|
Waste Incinerator |
JT-500 |
1 |
Smokeless and odorless |
|
1. |
Furnace Body |
Material: 10mm Q235B carbon steel + refractory material (110mm, high-temperature resistance up to 1300℃) + 200mm acid and alkali resistant refractory castable. |
1 |
Refractory material: resistant to extreme cold and extreme heat |
|
1.1 |
Thermocouple |
Measuring range: 0–1300℃ |
1 |
|
|
1.2 |
Burner |
Model: G10 Power: 0.13 kW |
2 |
Auxiliary Piping System
|
|
1.3 |
Oxygen Supply Fan |
Type: Centrifugal fan Power: 1.5 kW |
1 |
Auxiliary Ventilation Ducting System |
|
2. |
Secondary Combustion Chamber |
Material: 10mm Q235B carbon steel +refractory material (100mm,high-temperature resistance up to 1300℃) Equipped with observation port, burner interface, supplementary oxygen inlet, etc. |
1 |
Refractory material: resistant to extreme cold and extreme heat |
|
2.1 |
Thermocouple |
Measuring range: 0–1300℃ |
1 |
|
|
3. |
Diesel Tank |
Material: Q235-B Equipped with oil level gauge and oil pipe |
1 |
Compatible with natural gas, biogas, diesel, and coal gas |
|
4. |
Chimney |
Outlet size: φ430 Equipped with chimney fixing wire rope |
1 |
6M |
|
5. |
Fasteners and Sealing Components |
Bolts, nuts, gaskets, paper pads, etc. |
1 |
|
|
6. |
Valves |
|
1 |
Metal hard seal valve |
|
7. |
Electrical Control Cabinet |
Power indicator; Temperature indicator;Operation indicator; Overload protection device; Leakage protection device (electrical) |
1 |
Electrical components use CHINT brand |
|
8. |
Air Cooling System |
Air cooling and temperature reduction system |
1 |
Installed inside the furnace body |
|
9 |
Dynamic wave scrubbing |
|
1 |
|
|
10 |
Accessories |
Flanges, elbows, pipe fittings, cable brackets, butterfly valves, inspection ports |
1 |
|
|
11 |
Equipment Foundation |
Foundation construction, equipment room and related facilities |
1 |
Self-built by customer |
|
12 |
Electrical Installation |
Installation procedure USB drive |
1 |
|
|
13 |
Others |
Operation procedures, user manual, certificate of conformity |
1 |
|
|
14 |
Two-year accessory bonus |
2 sets of burner optical sensors, 2 sets of fuel injection/atomization units, 1 set of power distribution system switches, and 1 set of temperature control systems. |
|
|
Uses lightweight and heavyweight mullite refractory castables, which are resistant to extreme cold and heat. It effectively prevents cracks caused by thermal shock and improves the service life of the furnace.
According to national requirements, the external surface temperature of the furnace should be below 60℃. The double-layer insulation structure ensures that the outer surface temperature is ≤60℃, preventing accidental burns.
Before leaving the factory, the equipment undergoes a strict 7-day drying and heating process according to the furnace baking procedure, ensuring reliable operation, long service life, and optimal performance.
High-temperature resistant, deformation-resistant, with excellent sealing performance and durability.
High thermal stability, excellent corrosion resistance and wear resistance. The refractoriness is above 1770℃, with good slag resistance and superior heat insulation performance.
Equipped with a temperature display device, allowing operators to easily and directly monitor temperature changes.
Equipped with an electrical control cabinet, providing simple and convenient one-button ignition operation.

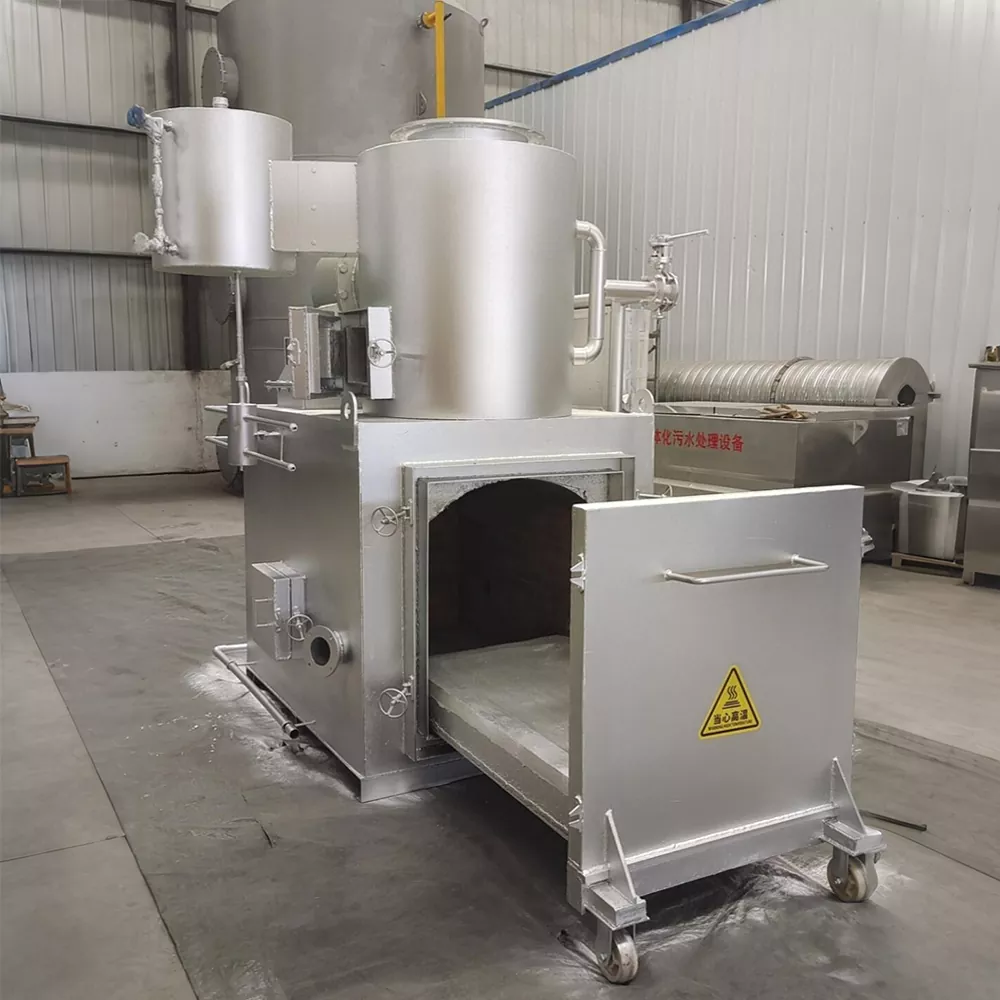

Horizontal structure makes waste feeding easier and ash removal more convenient.
Provides high-temperature treatment to achieve harmless disposal of waste.
The equipment room shall be constructed with 240mm brick walls, three-sided walls, and a cast-in-place concrete roof. The exterior walls shall be finished with white exterior waterproof paint, while the interior walls require no decoration.
Customer satisfaction is our service philosophy. In order to provide customers with timely and professional services, our company hereby makes the following commitments:
The equipment is provided with a one-year warranty from the date of acceptance and handover. During the warranty period, any equipment or facility failures covered under the warranty will be repaired or replaced by our company free of charge. After receiving a repair request, we will respond within 24 hours.
According to customer requirements, after equipment delivery, our company can arrange technical personnel to provide remote video training for the customer's operators and maintenance staff at any time.
After the warranty period expires, spare parts and replacement components will be provided at cost price.
Our company provides free lifetime technical support for the equipment.
Regardless of whether the equipment is within or beyond the warranty period, once we receive an after-sales service request from the customer, our maintenance personnel will provide a response within 12 hours.
We will regularly contact customers to collect feedback, opinions, and suggestions regarding after-sales service quality and product performance, ensuring continuous improvement of our services.
