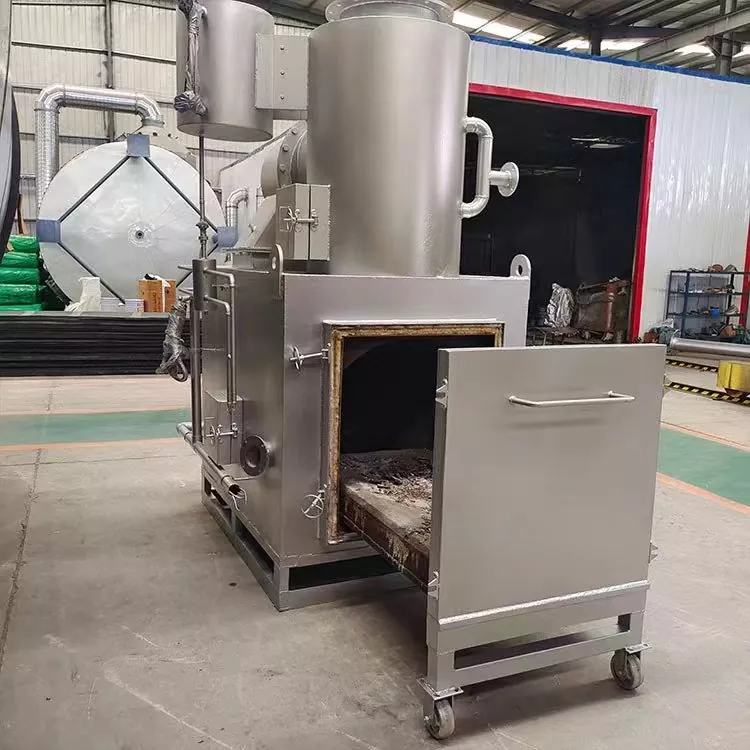

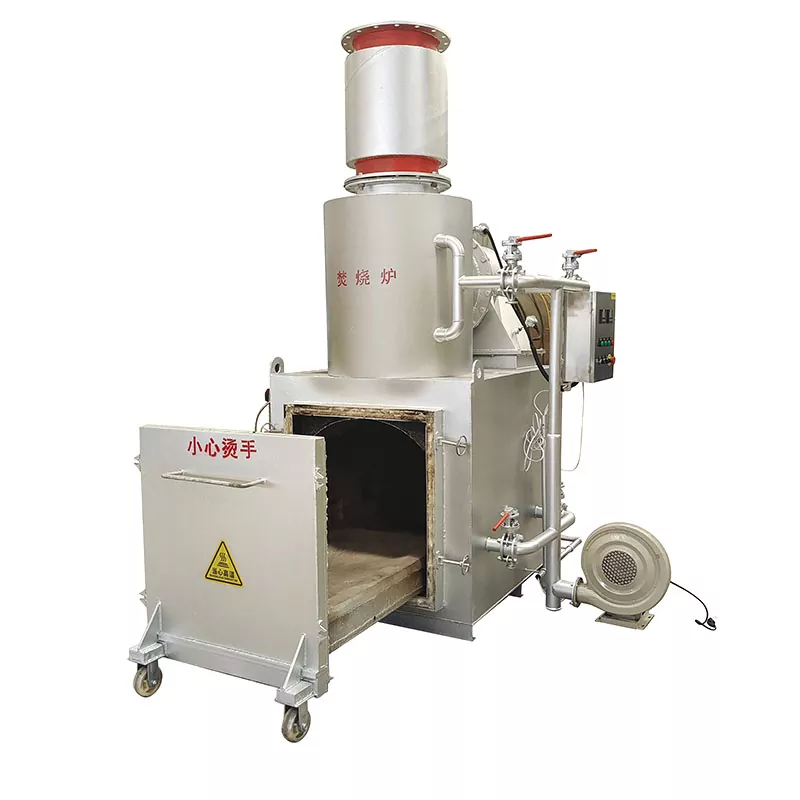

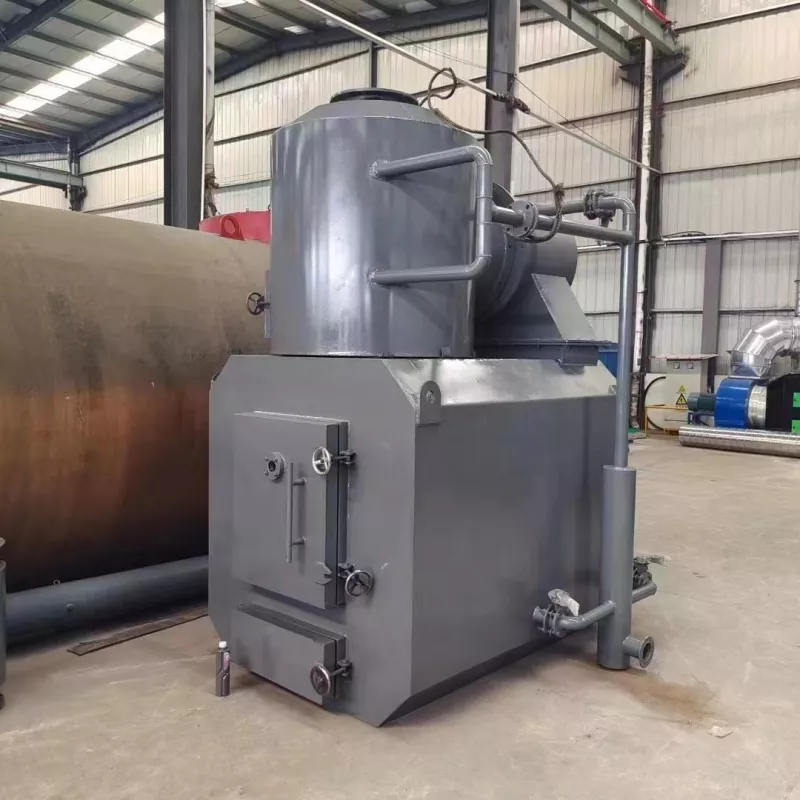

Our Mobile pet carcass incinerator is a revolutionary solution designed for on-site animal remains disposal, combining professional-grade performance with exceptional portability. This self-contained unit is ideal for veterinary mobile services, animal control units, disaster response teams, and rural veterinary practices requiring flexible operation locations.
● Trailer-Mounted Design: DOT-approved dual-axle chassis with electric brakes
● All-Terrain Capability: Reinforced suspension for rough road conditions
● Quick Deployment: <15 minute setup time with automatic stabilization jacks
● Compact Footprint: Standard parking space requirement (3.5×2m)
● Rapid Ignition System: Reaches 800°C in <20 minutes
● Dual-Chamber Technology: Primary (900-1100°C) + secondary (≥1200°C) chambers
● Fuel Flexibility: Diesel/LPG dual-fuel system with automatic switching
● Continuous Operation: 8+ hours runtime without refueling
● Modular Scrubber System: Removes 98% particulate matter
● Catalytic Converter: Breaks down dioxins/furans
● Odor Neutralizer: Built-in activated carbon filtration
● Real-Time Monitoring: Continuous emission display
● Weatherproof Control Panel: IP65-rated touchscreen interface
● Automated Cycles: 6 preset programs (small/medium/large animals)
● Remote Diagnostics: 4G-enabled performance tracking
● Battery Backup: 48-hour data retention
● Automatic Shutdown: Multiple redundant safety systems
● Fire Suppression: Integrated extinguisher system
● Noise Reduction: <65dB at 3m distance
● EMC Shielded: No electronic interference
|
Parameter |
Specification |
|
Model Number |
MCR-100M |
|
Chamber Capacity |
50-100kg (adjustable) |
|
Combustion Efficiency |
>99.9% |
|
Fuel System |
60L diesel tank + 20kg LPG |
|
Fuel Consumption |
4-6L diesel/hour |
|
Electrical System |
12V/24V DC + 110V/220V AC |
|
Power Consumption |
<2kW (normal operation) |
|
Emission Standards |
EPA Tier 4 Final equivalent |
|
Water Requirements |
10L/hour (closed loop) |
|
Transport Dimensions |
3500×2000×2500mm |
|
Operating Weight |
2800kg (loaded) |
|
Road Speed Rating |
100km/h max |
|
Turnaround Time |
2-3 hours/cycle |
|
Ash Volume |
3-5% input mass |
● Solar Charging System: For off-grid operation
● Hydraulic Loading System: For large animal handling
● Cold Climate Package: -30°C operation
● Bio-Security Kit: UV decontamination
● Memorial Service Module: Portable viewing area
● CE Marking (EN 1860-1)
● DOT/ADR Transport Certified
● ISO 14001 Environmental
● EPA Performance Verified
● RoHS/REACH Compliant
● 24/7 Readiness: Instant response capability
● Cost Efficiency: 40% lower operating costs vs fixed units
● Regulatory Acceptance: Pre-approved in 35+ countries
● Minimal Site Prep: Only level ground required
● Dual-Purpose: Can process medical waste
● Self-Cleaning Mode: Automated chamber maintenance
● Modular Components: Field-replaceable parts
● Service Interval: 200 hours between servicing
● Diagnostic Port: Standard OBD-II interface
● Mobile Veterinary Clinics: Farm animal services
● Animal Welfare Organizations: Disaster response
● Military/K9 Units: Field operations
● Park Services: Wildlife management
● Pest Control: Large-scale operations
