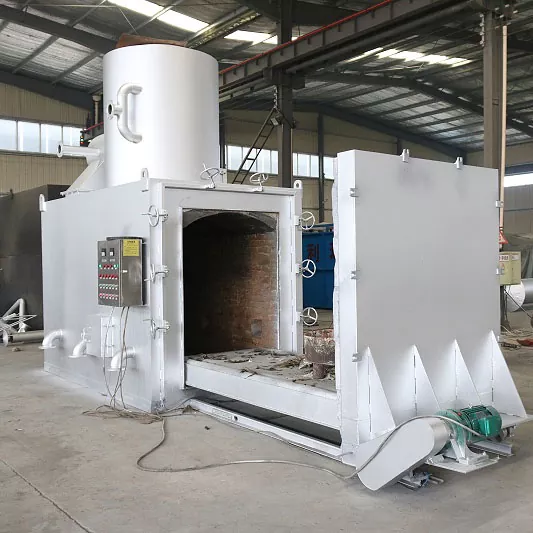

The 300kg Animal Carcass Incinerator is an industrial-grade waste management solution designed for high-capacity disposal of animal remains with maximum efficiency and minimal environmental impact. Engineered for large farms, slaughterhouses, veterinary hospitals, and government disease control centers, this system ensures complete sterilization of biohazardous materials while complying with stringent emission regulations.
Featuring dual-chamber combustion, automated temperature control, and optional pollution control systems, this incinerator provides a safe, hygienic, and cost-effective alternative to burial or outsourcing waste disposal.
· High-Volume Processing – Handles 300kg per cycle (suitable for cattle, horses, and large livestock)
· Ultra-High Temperature – 850°C–1250°C combustion ensures complete decomposition
· Dual-Stage Combustion – Primary chamber for waste loading + secondary chamber for gas afterburning
· Fuel Flexibility – Compatible with diesel, LPG, or natural gas (auto-switch models available)
· Advanced Emission Control – Optional wet scrubber, cyclone filter, or catalytic converter for smoke/odor reduction
· Automated Operation – PLC control panel with real-time temperature monitoring and safety alerts
· Reinforced Refractory Chamber – Multi-layer insulation (ceramic fiber + refractory concrete)
· Stainless Steel Casing – Grade 310S for corrosion/heat resistance
· Large Loading Access – 800mm×800mm door with hydraulic assist (optional)
· Ash Removal System – Manual tray or automated conveyor (customizable)
|
Category |
Specification |
|
Design Capacity |
300 kg/batch |
|
Primary Chamber Temp. |
850°C–1000°C |
|
Secondary Chamber Temp. |
1000°C–1250°C |
|
Fuel Consumption |
20–30 L/hr (diesel) / 15–25 m³/hr (LPG) |
|
Combustion Time |
2–4 hours (full load) |
|
Residual Ash |
≤5% of input weight |
|
Chimney Height |
6–8 meters (SS304) |
|
Power Supply |
220V/380V, 1.5kW (for control system) |
|
Dimensions (L×W×H) |
3000mm×1800mm×2200mm |
|
Weight |
~2800 kg |
1. Loading Phase
◎ Carcasses placed in primary chamber via reinforced door
◎ Automatic ignition initiates pre-heating (10–15 mins)
2. Primary Combustion
◎ Temperatures reach 850°C+, decomposing organic matter
◎ Volatile gases channeled to secondary chamber
3. Gas Afterburning
◎ Secondary chamber operates at 1100°C–1250°C
◎ Destroys dioxins/furans (complies with EU 2010/75/EU)
4. Emission Treatment
◎ Optional scrubber reduces particulate matter to <50mg/Nm³
5. Ash Handling
◎ Cooled residues collected in sealed containers
● Touchscreen PLC Interface
◎ Temperature curve programming
◎ Fuel flow adjustment
◎ Alarm triggers (overheat, flame failure)
● Remote Monitoring (4G/WiFi module optional)
● Livestock Epidemic Control
◎ Disposal of ASF (African Swine Fever), avian influenza-infected poultry
● Municipal Animal Control
◎ Stray animal carcass management
● Research Facilities
◎ Lab animal waste processing
● Disaster Response
◎ Mass mortality events (floods, wildfires)
1 Environmental Compliance
● Meets EPA, EU Industrial Emissions Directive (IED), and China GB18484-2020
● Particulate matter <50mg/m³ (with scrubber)
● CO emissions <100ppm
2 Economic Benefits
● 60% cost savings vs. commercial disposal services
● 20% fuel reduction via heat recovery design
3 Safety Enhancements
● Explosion-proof door locks
● Emergency cooling system
● Negative pressure combustion prevents smoke leakage
● Foundation: 150mm reinforced concrete pad
● Clearance: 2m around unit for maintenance
● Utilities: Fuel storage + 380V power connection
● Daily: Ash removal, burner nozzle inspection
● Monthly: Refractory lining check, chimney cleaning
● Annual: Full system certification
The 300kg Animal Carcass Incinerator represents the optimal balance between large-scale processing capability, regulatory compliance, and operational efficiency. Its modular design allows customization for specific waste streams, while the automated control system minimizes labor requirements.
For specialized configurations (e.g., continuous feeding, biogas compatibility), our engineering team provides turnkey solutions tailored to your operational needs.
